Hi, does anyone have the gerber files for alberts 1982 1w pll design ? often called a "dawson" driver. (usually red board). Its well established online. I could sit and copy the tracks painfully, but thought id ask on here first.

Either that or broadcast warehouses design.
https://radio.xtreamlab.net/bc-ware-1w-pll.html

Iv been using a driver i designed myself using the "ugly" method, but im not an RF engineer and most probably sprogs bad. The designs are out there so why not use them

Thanks

[Albert H]

Forget the BW circuit - you won't find a 145170 at sensible price these days - they've been obsolete for over 20 years!

[yellowbeard]

Here's the Dawson PLL with diagram, parts list and a .brd file I nicked from jugglingpirate.net before he took down his site:
https://mega.nz/file/WAl0gaZB#Gj5gx7fan ... avJR4RZa6Y
You may also want to consider this as a 1 watt - it's got a dead posh LCD display and fewer esoteric components:
http://www.3-mtr.info/shareware/RDVV%20 ... 0-%202004/
If I were you I would buy one of these when they come back on stock - you can turn it down to 1 watt, it's clean and comes with a tin-plate box - €62 Euro - the price alone makes it not worth pricking around making your own PCB, component shopping etc.
https://dutchrfshop.nl/en/diy-kits-pcb- ... -watt.html
Have fun now!

[rigmo]

With some modification on driver and can ger 4W with 2n3553

[rigmo]

With some modification on driver and can get 4W with 2n3553

[rigmo]

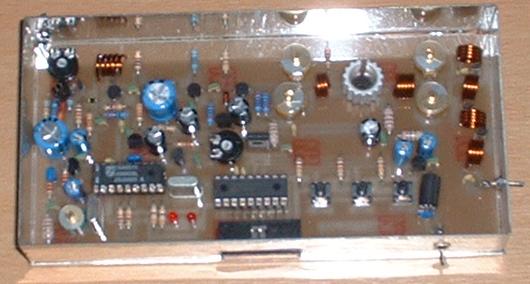

https://www.piratenpraten.nl/schemas/3- ... vnolcd.jpg

[LeeCavanagh]

Here's the Dawson PLL with diagram, parts list and a .brd file I nicked from jugglingpirate.net before he took down his site:
https://mega.nz/file/WAl0gaZB#Gj5gx7fan ... avJR4RZa6Y
You may also want to consider this as a 1 watt - it's got a dead posh LCD display and fewer esoteric components:
http://www.3-mtr.info/shareware/RDVV%20 ... 0-%202004/
If I were you I would buy one of these when they come back on stock - you can turn it down to 1 watt, it's clean and comes with a tin-plate box - €62 Euro - the price alone makes it not worth pricking around making your own PCB, component shopping etc.
https://dutchrfshop.nl/en/diy-kits-pcb- ... -watt.html
Have fun now!

How does the drfs 6 v2. Compare to the nrg? I can’t find any specs.

[LeeCavanagh]

Scratch that, specs have loaded now
